System Installation Assessment (Standards and Signage)

 Question 1

Identify from the options below four up-to-date standards that you should either own or have access to when designing and installing grid-connected PV systems.

Select FOUR correct answers:

 Question 2

Identify, according to AS/NZS 5033:2021, what international standard crystalline silicon modules must comply with?

Select one:

 Question 3.1

You have just installed a LV 3kW system on a residential house.

The array is located on the roof, and the inverter is mounted on the inside wall of the garage. The switchboard for the house is located on the outside wall of the garage.

The system uses a disconnection point as its isolation method.

Match the following signs to their required location:

 Question 3.2

You have just installed a LV 3kW system on a residential house.

The array is located on the roof, and the inverter is mounted on the inside wall of the garage. The switchboard for the house is located on the outside wall of the garage.

The system uses a disconnection point as its isolation method.

Match the following signs to their required location:

 Question 3.3

You have just installed a LV 3kW system on a residential house.

The array is located on the roof, and the inverter is mounted on the inside wall of the garage. The switchboard for the house is located on the outside wall of the garage.

The system uses a disconnection point as its isolation method.

Match the following signs to their required location:

 Question 4

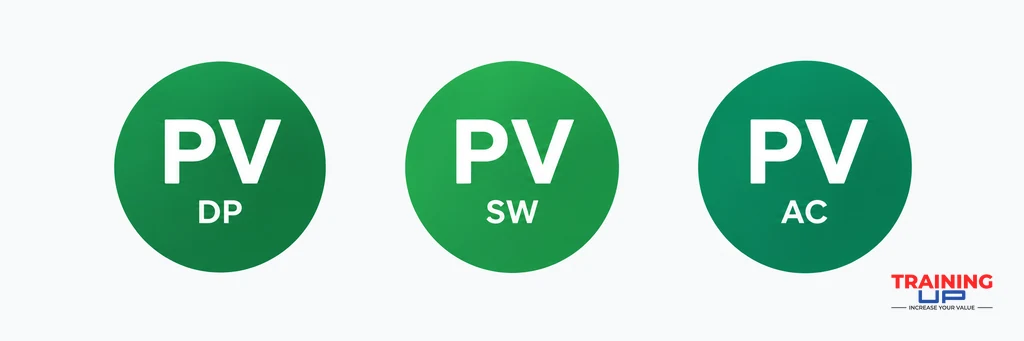

You’re installing a system that uses microinverters. What extra letters do you need on your green PV sign?

 Question 5

You’re installing a system that uses a rooftop isolator. What extra letters do you need on your green PV sign?

 Question 6

You’re installing a system that uses a disconnection point. What extra letters do you need on your green PV sign?
